Applicable floors of the polisher machine are ceramic tiles, marble, terrazzo, cement floors, cured floors, epoxy floors, etc. It is a portable electric floor buffer has functions of floor polishing, crystal surface burnishing, ground grinding, floor cleaning, carpet cleaning, etc.
Specification
Model |
T-FPM-P17A |
Base Diameter |
17 inch |
Power |
1.5 hp |
Voltage |
110V/220V |
Rotation Speed |
150rpm |
Cable Length |
13m |
Color |
random |
Weight |
48kg |
Standard Configuration |
needle seat*1, water tank*1, floor brush*1, carpet brush*1 |
Optional Configuration |
counterweight iron (20kg/pc) |
Floor Polisher Machine Structure Diagram

Floor Polisher Machine Standard Configuration

Floor Polisher Machine Operation Method
 |
 |
 |
Hold the switch handle with both hands. |
Lift the handle up and turn on switch. |
Hold the cleaning water tank valve. |
 |
 |
 |
Rotate the valve, drain water for cleaning. |
Loosen the adjuster, pick up the adjusting bracket. |
After adjusting the height, set up and fix the adjusting bracket. |

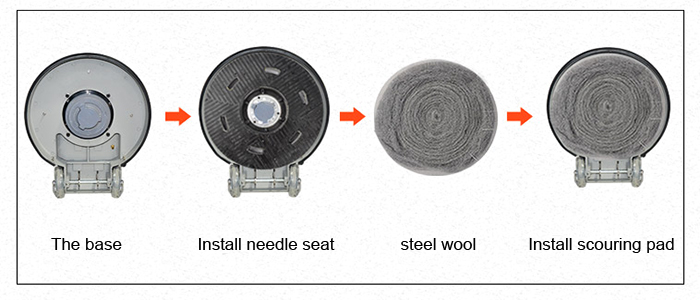

Tips: Polisher machine installation for crystal plane floor polishing.

- Fix the needle seat on the base of the floor polisher machine.
- Wind steel wool on the scouring pad (one can polish about 30m2).
- Install the scouring pad on needle seat (floor polisher machine installation completed).
