    Manual Pressure Test Pump, 1.6~40MPa

    Manual pressure test pump for sale. Optional working pressure 1.6~40MPa (232~5802 psi), flow rate 13mL/time or 38mL/time, water tank fully enclosed or semi-closed. Hydraulic tester pump for pipe pressure testing, manual operated, good price.
    SKU: T-HPTP-SB
    *
    $108.38
    i h
    Free shipping
    Delivery date: 6-12 days

    The pressure test pump is a hydraulic hand pump. It is used in pressure testing for various pressure vessels, pipelines, valves, steam boilers and rubber pipe fittings, etc. Hydraulic test pump can also be used as equipment to provide high-pressure liquid sources in various laboratories or workshops.

    Specification

    Model Working Pressure  Flow Rate Water Tank Hose Port Weight Dimension (L*W*H)
    (MPa) (psi) (mL/time) (kg) (mm)
    T-SB-1.6 1.6 232 13 semi enclosed G1/2" (DN15, 20mm) 5.5 340*160*220
    T-SB-2.5 2.5 363 13 semi enclosed G1/2" (DN15, 20mm) 5.5 340*160*220
    T-SB-4.0 4 580 13 semi enclosed G1/2" (DN15, 20mm) 5.5 340*160*220
    T-SB-6.3 6.3 914 13 semi enclosed G1/2" (DN15, 20mm) 8.5 340*160*220
    T-SB-10 10 1450 38 fully enclosed G1/2" (DN15, 20mm) 8.5 365*180*270
    T-SB-16 16 2321 38 fully enclosed G1/2" (DN15, 20mm) 9.5 365*180*270
    T-SB-25 25 3626 38 fully enclosed G1/2" (DN15, 20mm) 11.5 400*200*295
    T-SB-40 40 5802 38 fully enclosed G1/2" (DN15, 20mm) 11.5 400*200*295

    Dimension of SB series of Manual Pressure Test Pump, 1.6~40MPa

    Installation and Use Precautions

    Pressure gauge reading of SB series of Manual Pressure Test Pump, 1.6~40MPa Sealing Rings of SB series of Manual Pressure Test Pump, 1.6~40MPa
    Pressure Gauge Reading
    • The normal water pressure of tap water is 0.3MPa (0.1MPa is 1kg pressure), and the water pressure of high floors is 0.4MPa.
    • Water pipe pressure testing is generally between 0.8~1.0MPa. Pressure testing time for household pipelines is maintained at 2 to 4 hours. (The specific situation is subject to the actual construction environment)
    • Pressure testing for home should be between 0.8~1.0MPa. Excessive pressure will shorten the service life of pipeline and even cause fatal damage to pipeline. For industrial pressure testing, adjust pressure according to demand.
    Sealing Rings
    • The manual pressure test pump has 3 sealing rings, which are located at the internal thread of union, the check valve and the pump body.
    • These sealing rings have been installed at factory, and users do not need to install them again.
    • Hose union must be installed last, otherwise the high pressure hose will be easily damaged.
    Water-Absorbent Spout of SB series of Manual Pressure Test Pump, 1.6~40MPa Handle of SB series of Manual Pressure Test Pump, 1.6~40MPa
    Water-Absorbent Spout
    • After the main body of booster pump is locked in water tank, inlet pipe and filter must be tightened to prevent impurities from entering the pump body and causing damage.

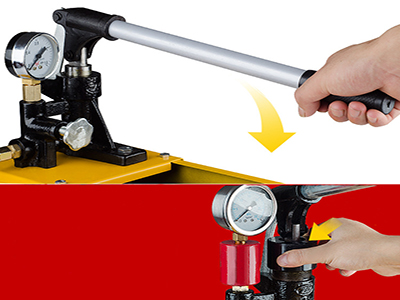

    Handle
    Note for T-SB-25 and above models:
    1. Before shaking the handle, loosen the iron cap on pump head, then the major shaft starts to work.
    2. When water in water pipe is full, tighten the iron cap on pump head, and then the minor shaft starts to pressurize.

    Manual Pressure Test Pump Operation Steps

    Manual Pressure Test Pump Operation Step 1 Manual Pressure Test Pump Operation Step 2 Manual Pressure Test Pump Operation Step 3
    1. Assemble the pressure test pump, check whether the main body and accessories are complete. 2. Connect one end of oil tube to pump body. (Pay attention to seal connection and add gaskets, otherwise water will leak) 3. Connect the other end of oil tube to the pipeline to be tested. (Be sure to wrap it with PTFE TAPE)
    Manual Pressure Test Pump Operation Step 4 Manual Pressure Test Pump Operation Step 5 Manual Pressure Test Pump Operation Step 6
    4. Fill the tested pipe with water, exhaust air, then close the pressure relief valve. 5. Fill the water tank with water, then press the handle rod up and down to start pressure test and pressurization. 6. When the pressure gauge reading rises to the required value, pressurization can be stopped at this time.

    Note: After pressurization is stopped, if the value shown on the pressure gauge does not decrease, it indicates that the pipeline has good pressure resistance. On the contrary, it means that sealing performance of the tested pipeline is not good, there is leakage, so the pressure drops.

    0.0 0
    *
    *
    • Bad
    • Excellent
