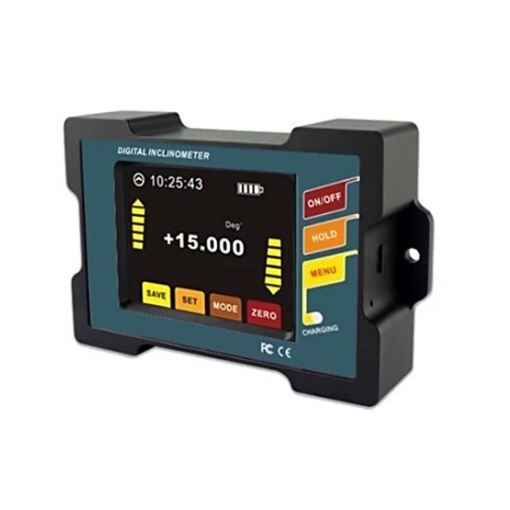

    Single Axis Magnetic Digital Inclinometer, RS485/ RS232 output

    Single Axis Magnetic Digital Inclinometer, RS485/ RS232 output

    0 review(s) | Add your review
    Single axis magnetic inclinometer digital offers flexible output signal options—choose between RS485 or RS232 to match your system needs—and selectable maximum measuring angles of ±15° or ±30° to adapt to diverse scenarios. With a maximum absolute accuracy of 0.005° and an angle resolution of 0.001°, it delivers ultra-reliable readings, while its robust design ensures exceptional stability and safety for long-term use.
    SKU: T-DMI-815
    $849.20
    i h
    Free shipping
    Delivery date: 6-12 days
    Overview

    Single axis digital slope meter adopts the micro-electromechanical control principle and is equipped with a dual-core measurement unit. During the measurement process, the Y-axis can be used to compensate the X-axis. Then, the interleaving and temperature compensation model algorithms are applied to leverage the operational advantages of the micro-electromechanical principle, ensuring the long-term stability and repeatability of the instrument's measurements.

    Features

    • High precision: Accuracy <0.003°, repeatability 0.003°, angle resolution 0.001° for reliable measurements.
    • Flexible ranges: The digital inclinometer sensor offers ±15°/±30° angle ranges to fit different application needs.
    • Versatile modes: Switchable absolute/relative measurement; measurable from sides and bottom.
    • Easy installation: Double benchmark strong magnets for quick, stable attachment to ferromagnetic surfaces.
    • Intelligent compensation: Auto-angle interleaved and auto temperature drift compensation to reduce errors.
    • Clear display: 64-color luminous LCD (L57.6mm*W43.2mm visible area) with night vision 4-color screen.
    • Practical functions: Data storage; VC software compatibility (via 5-pin USB) for data analysis.
    • Durable & portable: Aluminum anodizing material, 300g weight, L117mmW75mmH27.1mm size, IP54 waterproof.
    • Long battery life: The electronic inclinometer has 3.7V rechargeable lithium battery, 5h charging for 11h continuous use.
    • Customizable performance: The clinometer digital offers filter frequency to adjust response speed.

    Specification

    Model DMI815-15 DMI815-30
    Angle Measuring Range ±15° ±30°
    Mm Measuring Range 267mm 577mm
     Millimeter Measuring Accuracy 0.1 mm (RMS) 0.2 mm (RMS)
    The Highest Measuring Accuracy ＜0.005 (Full measuring range) ＜0.001 (Full measuring range)
    Measuring Axis Single axis
    Angle Measuringt Solution 0.001°
    Three Measuring Mode Selectable Radian, Angle, mm/meter can be set
    Absolute Accuracy 0.05°/rms
    Millimeter Measuring LCD 0.02 mm
    LCD 64-color true color luminous display
    LCD Visible Area Size L57.6mm*W43.2mm
    Working Temperature -10℃-70℃
    Working Humidity 85% RH
    Power Supply 3.7V Charging Lithium Battery
    Ideal Charging Time 5h
    Battery Sustainable Charging Times 11h
    Output Signal RS485/RS232
    Equipped with PC Software VC Software
    Connect Plug in Standard 5 Pin USB Connector
    Shock Resistance 10g @11ms, three-axis (Half sine wave)
    Shock Impact 10g rms, 10-100Hz
    Weight 300g
    Waterproof Grade IP54
    Material Aluminum Anodizing
    Size L117mm*W75mm*H27.1mm
    Certificate CE, FCC, ROHS
    Warranty 12 months

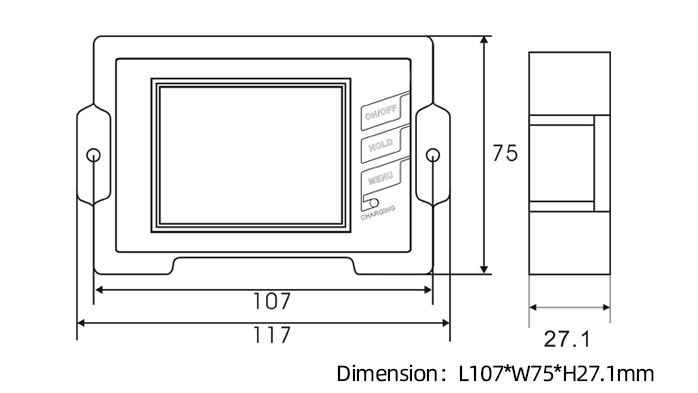

    Dimension (Unit: mm)

    Single axis output digital inclinometer DMI815

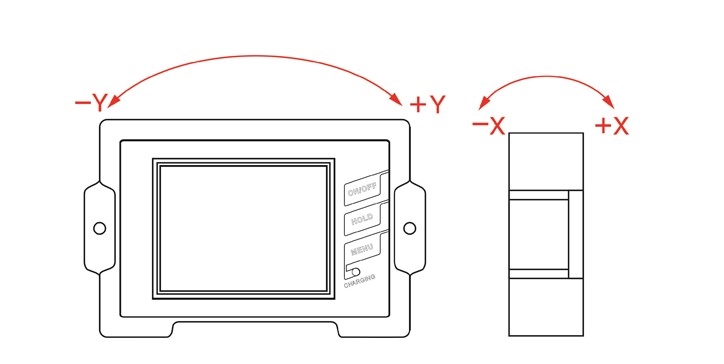

    Measuring Direction

    Measuring direction of digital inclinometer DMI815

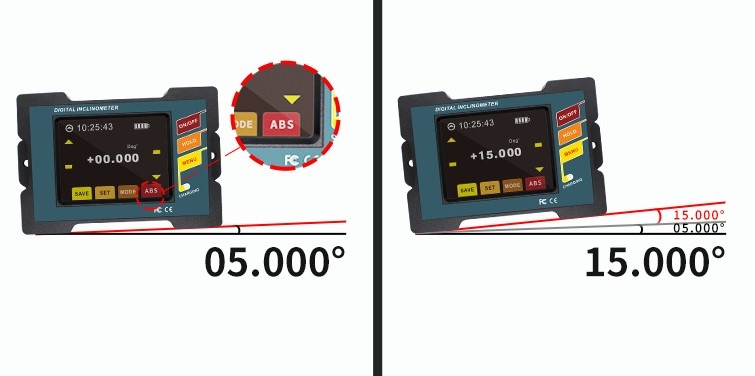

    Absolute/Relative Measurement Mode

    Default absolute measurement mode

    Click the "ZERO" button to switch to "ABS" relative mode

    Application Fields

    6 Tips for Using & Maintaining Your Single Axis Magnetic Digital Clinometer

    1. Proper calibration frequency of the single axis magnetic digital inclinometer to maintain measurement accuracy
    2. Precautions for using the single axis magnetic digital inclinometer near strong magnetic interference sources
    3. Recommended storage conditions for the single axis magnetic digital clinometer when not in use
    4. How to troubleshoot common data transmission issues between the digital inclinometer and PC
    5. Maintenance methods for the lithium battery of the digital inclinometer to extend its service life
    6. Differences in application scenarios between the ±15° and ±30° measuring range versions of the single axis digital clinometer
