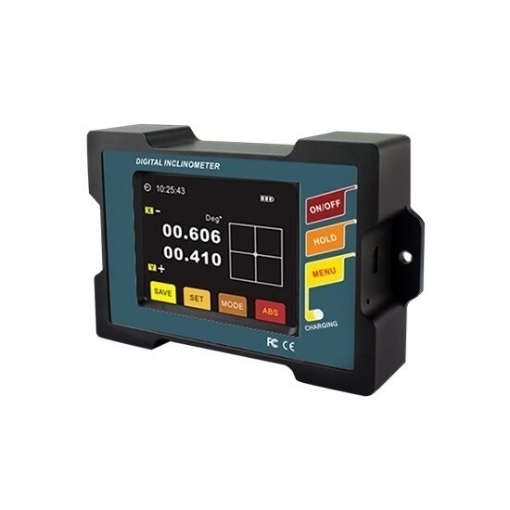

    Dual Axis Magnetic Digital Inclinometer, RS485/ RS232 output

    Dual Axis Magnetic Digital Inclinometer, RS485/ RS232 output

    0 review(s) | Add your review
    Low-priced digital inclinometers for sale. The dual axis magnetic inclinometer digital with selectable ±15°/±30° measuring ranges, max absolute accuracy <0.005° , 0.001° angle resolution, and 0.05°/rms absolute accuracy. It offers RS485/RS232 output, a 64-color luminous LCD (L57.6mmW43.2mm visible area), and supports data storage, absolute/relative measurement switching, double benchmark strong magnet installation, plus auto compensation functions. Powered by a 3.7V rechargeable lithium battery (5h charge for 11h use), it has IP54 waterproofing, aluminum anodizing build, 10g shock resistance/impact, 300g weight.
    SKU: T-DMI-825
    $912.70
    i h
    Free shipping
    Delivery date: 6-12 days
    Overview

    Our electronic magneti inclinometer is a high accuracy measuring tool designed for precise angle detection in various industrial and professional scenarios. It combines advanced sensing technology with user-friendly features, ensuring reliable and accurate measurements while offering excellent portability and durability. Whether used in mechanical installation, construction alignment, or equipment calibration, this 2 axis inclinometer meets the strict demands of high-precision measurement tasks.

    Specification

    Model DMI825-15 DMI825-30
    Angle Measuring Range ±15° ±30°
    Mm Measuring Range 267mm 577mm
     Millimeter Measuring Accuracy 0.1 mm (RMS) 0.2 mm (RMS)
    The Highest Measuring Accuracy ＜0.005 (Full measuring range) ＜0.001 (Full measuring range)
    Measuring Axis Dual axis
    Angle Measuringt Solution 0.001°
    Three Measuring Mode Selectable Radian, Angle, mm/meter can be set
    Absolute Accuracy 0.05°/rms
    Millimeter Measuring LCD 0.02 mm
    LCD 64-color true color luminous display
    LCD Visible Area Size L57.6mm*W43.2mm
    Working Temperature -10℃-70℃
    Working Humidity 85% RH
    Power Supply 3.7V Charging Lithium Battery
    Ideal Charging Time 5h
    Battery Sustainable Charging Times 11h
    Output Signal RS485/RS232
    Equipped with PC Software VC Software
    Connect Plug in Standard 5 Pin USB Connector
    Shock Resistance 10g @11ms, three-axis (Half sine wave)
    Shock Impact 10g rms, 10-100Hz
    Weight 300g
    Waterproof Grade IP54
    Material Aluminum Anodizing
    Size L117mm*W75mm*H27.1mm
    Certificate CE, FCC, ROHS
    Warranty 12 months

    Features

    • Exceptional Accuracy: Boasts a maximum absolute accuracy of less than 0.005° and a repeatability of 0.003°, ensuring ultra-precise angle readings for critical applications.
    • Flexible Measuring Range: Digital slope meter offers selectable maximum measuring angles of ±15° and ±30°, adapting to different measurement requirements in diverse working environments.
    • High-Resolution Display: Equipped with a 64-color true color luminous LCD screen (visible area size: L57.6mm*W43.2mm) that provides clear, vivid readings even in low-light conditions, thanks to its night vision four-color screen function.
    • Versatile Measurement Modes: Supports switching between absolute and relative measurement, as well as three selectable units, enhancing usability for various measurement scenarios.
    • Convenient Installation & Use: Features double benchmark strong magnet installation for easy and stable attachment to metal surfaces; both sides and bottom of the device can be used for measurement, increasing operational flexibility.
    • Intelligent Compensation Functions: Built-in auto-angle interleaved compensation and auto temperature drift compensation, minimizing errors caused by angle changes and temperature fluctuations.
    • Practical Data & Power Features: Best digital inclinometer includes a data store function to save important measurement data; powered by a 3.7V rechargeable lithium battery with 11 hours of sustainable use after a 5-hour full charge, and supports filter frequency selection for optimized data stability.
    • Robust & Durable Design: Dual axis mechanical inclinometer constructed with aluminum anodizing material, it has a waterproof grade of IP54, shock resistance of 10g @11ms (three-axis, half sine wave), and shock impact of 10g rms, suitable for harsh industrial environments.

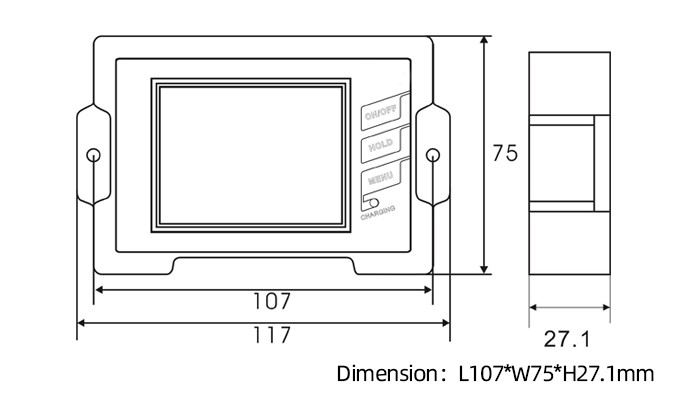

    Dimension (unit=mm)

    The biaxial digital inclinometer has a compact and portable size, with specific dimensions (unit: mm) as follows:Length: 117mm, Width: 75mm, Height: 27.1mmIts lightweight design (300g) allows for easy carrying and operation in confined spaces or fieldwork.

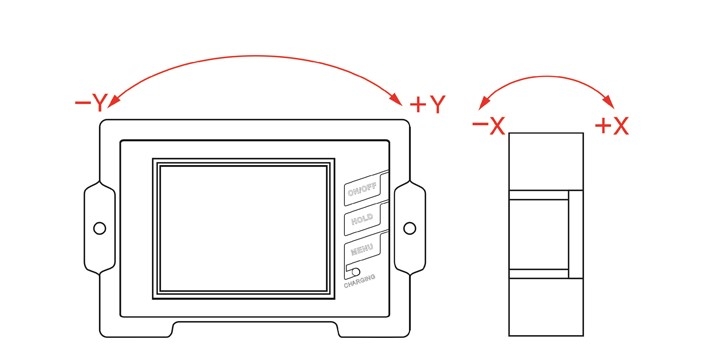

    Measuring Direction

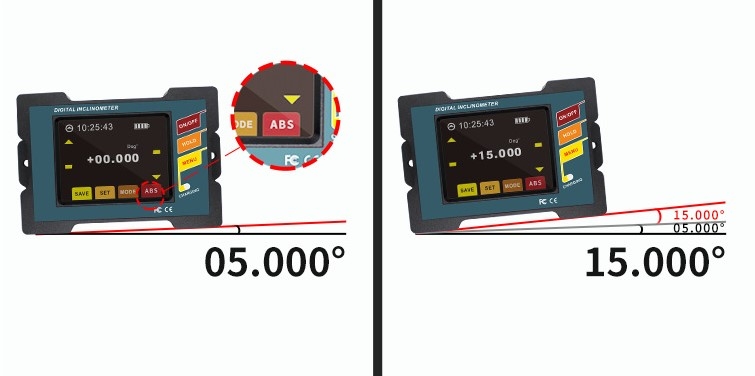

    Absolute/Relative Measurement Mode

    Default absolute measurement mode

    Click the "ZERO" button to switch to "ABS" relative mode

    Application Fields

    5 Tips for Using & Maintaining Your Dual Axis Magnetic Digital Inclinometer

    1. Selection of output signal (RS485/RS232) for dual axis digital inclinometer: Consider the communication distance and on-site interference when choosing between RS485 and RS232 output to ensure stable data transmission.
    2. Calibration frequency of digital inclinometer: Regularly calibrate the device according to the frequency of use (recommended every 3-6 months) to maintain its high measurement accuracy.
    3. Battery maintenance for digital inclinometer: Avoid overcharging or deep discharging the lithium battery; store the device with a 50%-70% battery level when not in use for a long time to extend battery life.
    4. Protection of digital inclinometer in harsh environments: Although it has IP54 waterproof grade, avoid long-term immersion in water or exposure to corrosive substances; use a protective case during transportation to prevent shock damage.
    5. Application scenarios for dual axis digital inclinometer: It is especially suitable for tasks requiring multi-directional angle measurement, such as bridge deflection monitoring, ship hull alignment, and precision machine tool installation.
