    Turntable Automatic Screw Feeder, M1.7~M5.0

    Automatic screw feeder has a longer body, digital display and counting function. Screw discharge method brushless adsorption turntable-type. Applicable screws M1.7, M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M4.5, M5.0. Installable screw quantity is 2000 pcs at M1.4 or 600 pcs at M3.5, capacity 200cc~220cc. Suitable screws length≤19mm.
    SKU: T-ASF-175
    *
    $927.69
    i h
    Free shipping
    Delivery date: 6-12 days

    Specification

    Model T-ASF-RJ1
    Shell Material black baking varnish
    Applicable Screws Spec. M1.7, M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M4.5, M5.0
    Screw Head Shape 0/00/1/2(+)
    Screw Thread Length ≤19mm (without screw head thickness)
    Screw Head Thickness ≥0.2mm
    Installable Screw Quantity at M1.4 2000 pcs
    at M3.5 600 pcs
    Supply Speed (Sec/EA) high 0.7
    low 1.5
    Input AC 100-240V (50/60Hz)
    Output 12V/2.0A
    Capacity 200~220cc
    Weight 3.1kg

    Features

    1. Fuselage material can select stainless steel or black baking varnish, cross-feeding mechanism, and precise positioning point. Screw discharging is smooth, fast speed, high precision, and strong stability, and it is not easy to slipping, stucking, bonding, etc.
    2. Vibration, drum and turntable are driven by brushless motors. Digitalization control, can perform efficient function setting operation on drum motor, turntable motor and vibration motor.
    3. Individual counting function and total counting function. Each time a screw is removed, the number increases by 1. Look at the value on display to know if you missed the screw.
    4. Automatic fault alarm function, anti-overcurrent, anti-overvoltage, anti-leakage, anti-breakdown.
    5. Professional design for automatic locking screw machines, such as XY-axis, 3-axis, 4-axis and screw-locking robots, etc.

    Details of Turntable Automatic Screw Feeder, M1.7~M5.0

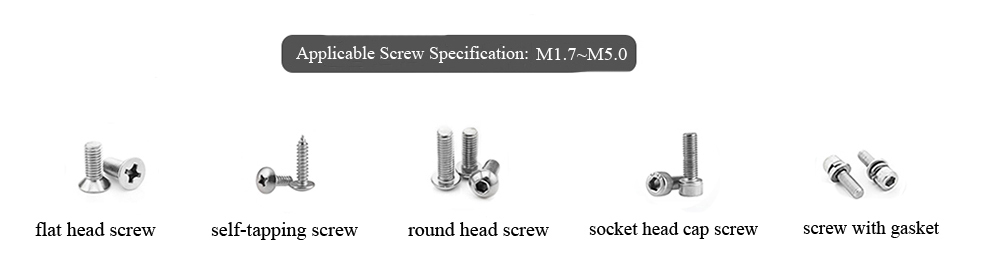

    Applicable Screws of Turntable Automatic Screw Feeder, M1.7~M5.0

    Dimension Drawing of Automatic Screw Feeder

    Dimension Drawing of Turntable Automatic Screw Feeder, M1.7~M5.0

    Orbital Adjustment

    1. Loosen the screw that locks the bite-wing and remove the bite-wing.
    2. Loosen the 3 screws on the right side of orbital bottom. (Just make the orbital loose, no need to unscrew screws completely)
    3. Loosen the screw on the right side of orbital front baffle, then adjust the orbital left and right.
    4. Adjust the orbital width according to size of the screws used. Bite-wing should be adjusted to be about 0.5mm larger than the thickness of thread (make screws can go back and forth smoothly).
    5. Lock the bite-wing. Keep the width between the bite-wing and orbital front baffle consistent, and then tighten screws on the right side of the front baffle and the screws on the orbital bottom.

    Orbital Adjustment for Automatic Screw Feeder

    Tips: Daily maintenance for automatic screw feeder.

    • Regularly clean the screws storage bin to keep it clean. Soft magnet and high pressure air gun can be used for cleaning.
    • Replace screwdriver bit in time. Loosen the hexagonal socket screw that fixes the bit, turn the bit clockwise to replace it. (Note: The connection between bit and screwdriver is reverse wire).
    • Replace or adjust the brush regularly. When the bristles of brush has been worn out, so that the abnormal screws on track cannot be removed, the height between brush and track needs to be adjusted. Loosen the two screws that fix the brush to adjust it up and down.
    • Torque adjustment. If there is a reserved window on screwdriver bit, torque can be adjusted directly. If it needs to use a torque meter to calibrate torque, remove screwdriver bit then operate.
