Electric circular saw has a saw blade of 5.5 inch diameter, powered by 240V AC. Sawing materials are wood and plastic. The handheld electric circular saw has compact and mini structure, small size and lightweight, easy and convenient for operation.
Specification
Model |
T-CS001A |
T-CS001B |
Rated Voltage |
240V/60Hz, 230V/50Hz |
Input Power |
750W |
800W |
Rated Current |
3.1A, 3.3A |
3.3A, 3.5A |
No-Load Speed |
4000 rpm |
Blade Diameter |
5.5 inch (140mm) |
Bevel Cutting Rang |
0-45° |
Cutting Capacity |
0-45mm |
Accessories |
3 saw blades, 1 dust tube, 1 tool for saw blade change |
Color |
Random |
Weight |
6 kg |

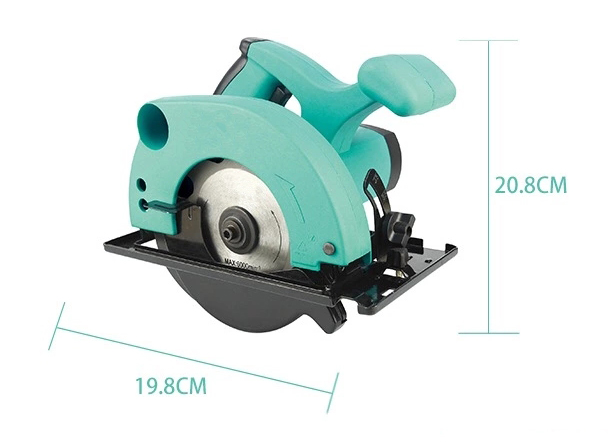

Electric Circular Saw Dimension Drawing

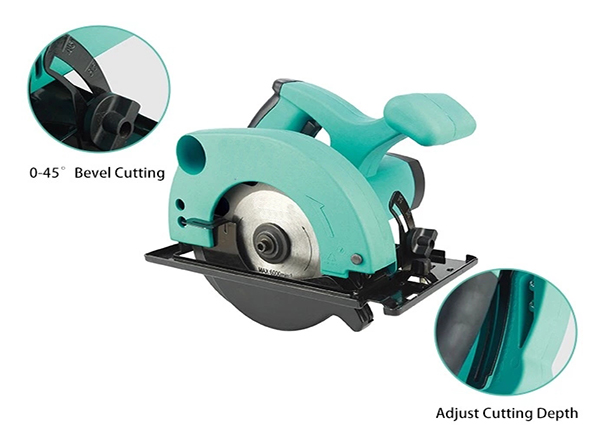

Electric Circular Saw Details

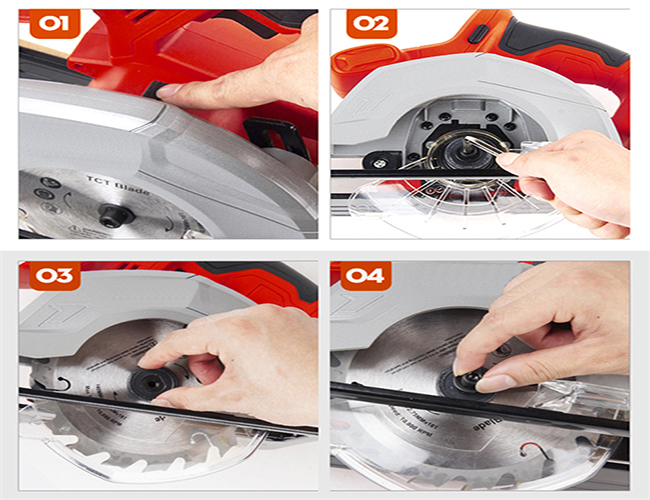

Electric Circular Saw Blade Installation
- Press the spindle lock switch to lock spindle.
- Use a wrench to rotate counterclockwise to remove pressing plate of saw blade.
- Insert saw blade from the counterclockwise direction of saw teeth, and install pressing ring.
- Put back saw blade pressing plate, and turn the screw clockwise, compress the pressing plate.

Tips: Preparations for using electric circular saw.
- Confirm that saw blade, housing, and handle of the electric circular saw are not cracked or damaged.
- Confirm that the cable cord and plug are intact, switch operates normally, correctly protective connect to neutral, firm and reliable.
- Check whether saw blade is installed firmly, bolts are tightened, and the internal and external chucks clamp saw blade tightly. Saw blade plane should be perpendicular to the horizontal axis of electric circular saw.
- Check whether the rotation of movable protective cover is flexible and whether it is deformed. Ensure that it will not rub against electric circular saw blade, connection is reliable, and it will not fall off during operation.
- Check whether the side handle of electric circular saw is installed firmly, and whether it will be loose during holding operation.
