    4 x 36 Inch Belt and 6 Inch Disc Sander

    Best belt and disc sander for sale. Sanding belt size 4 x 36 inch (100 x 914mm), sanding disc diameter 6 inch (150mm). Optional motor power 1/2 hp, 3/4 hp, 4/5 hp, corresponding power supply 220V 2.0/2.5/2.7 Amp. Cheap combination sander for metal, wood, aluminum, plastic, etc.
    SKU: T-EBS-4366
    *
    *
    *
    *
    *
    $324.41
    i h
    Free shipping
    Delivery date: 6-12 days

    The electric bench sander is a small combo sanding machine, which has a 4 x 36 inch sanding belt and 6 inch sanding disc. It is a tabletop sanding machine with small size, can be used for industrial, commercial, or homemade DIY use.

    Specification

    Model T-KH-4113 T-KH-411511 T-KH-4115
    Motor Power 1/2 hp (450W) 3/4 hp (550W) 4/5 hp (600W)
    Rated Voltage 220V, 50Hz 220V, 50Hz 220V, 50Hz
    Rated Current 2A 2.5A 2.7A
    Sanding Belt Size 4 x 36 (100 x 914mm)
    Sanding Belt Speed 7.6m/s 5.8m/s 4.6m/s
    Sanding Disc Diameter 6 inch (150mm)
    Sanding Disc Speed 1,420 rpm 1,800 rpm 2,850 rpm
    Workbench Size 225*158mm 178*135mm 225*155mm
    Workbench Tilt Angle 0~60° 0~45° 0~45°
    Sanding Belt Effective Length 290mm 280mm 300mm
    Overall Size 330*180*280mm 412*255*285mm 380*150*240mm
    Weight 14kg 18.4kg 18kg
    Attachment Allen wrench*1, wrench*1, connection rod*1, aluminum disc*1, rubber pad*1, angle ruler*1

    Belt and Disc Sander Functions

    • Grinding all kinds of wooden boards, artificial boards, etc., including softwood and hardwood.
    • Grinding and polishing various soft metals, aluminum, copper, etc.
    • Furniture production, handicraft production, DIY production, etc.

    Belt and Disc Sander Structure & Dimensions Diagram

    T-KH-4113 (1/2 hp)

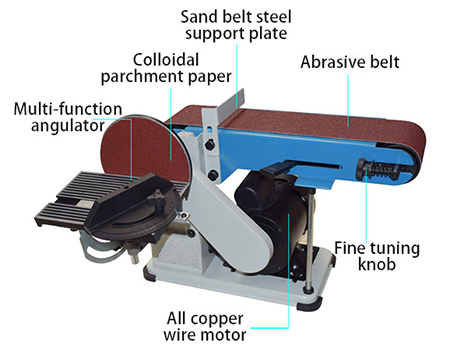

    Structure of 4 x 36 Inch Belt and 6 Inch Disc Sander, 450W Dimensions of 4 x 36 Inch Belt and 6 Inch Disc Sander, 450W
    T-KH-411511 (3/4 hp)
    Structure of 4 x 36 Inch Belt and 6 Inch Disc Sander, 550W Dimensions of 4 x 36 Inch Belt and 6 Inch Disc Sander, 550W
    T-KH-4115 (4/5 hp)
    Structure of 4 x 36 Inch Belt and 6 Inch Disc Sander, 600W Dimensions of 4 x 36 Inch Belt and 6 Inch Disc Sander, 600W

    Belt and Disc Sander Details

    Quickly replace the sanding disc. Angle push ruler of the 4 x 36 Inch Belt and 6 Inch Disc Sander
    Quickly replace the sanding disc. Tear off the old sanding disc to replace for a new one, which is convenient and quick. Angle push ruler. The belt and disc sander is equipped with a precision ruler, which can be adjusted according to needs.
    Scale for tilt angle Metal Guard Plate
    Scale for tilt angle. The worktable can be tilted from 0-60°, the scale indication makes the sanding more accurate. Metal bezel. It can be used to assist sanding and to place materials.
