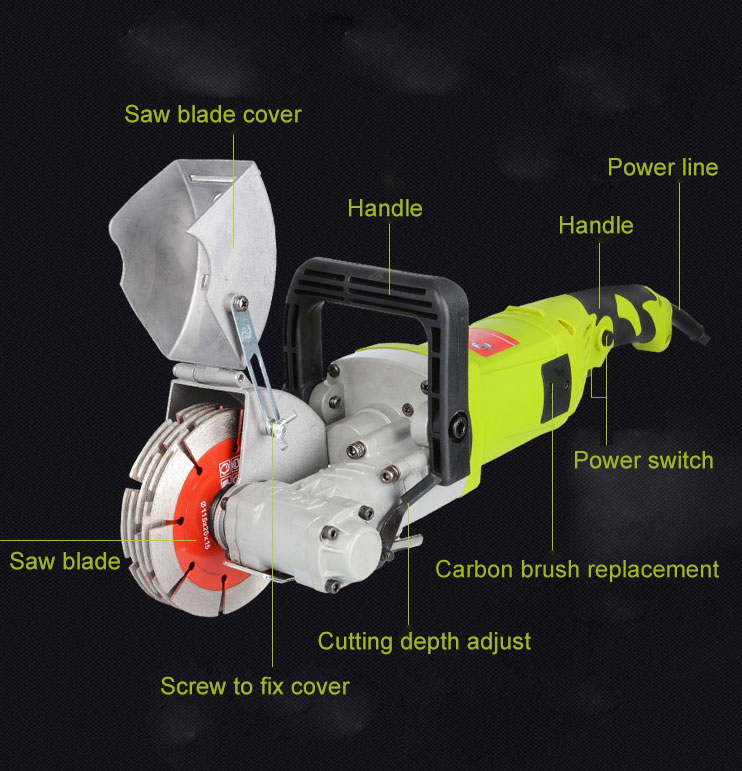

4000 watt wall chaser grooving machine for sales, is a powerful construction tool widely used to making cuts for the installation of conduits, place the cables for electrical systems and for the installation of pipes for hydraulic systems. It's powered by 50Hz 220V electric motor, 115mm (4.5") saw blade diameter, 7500 rpm working speed.
|Saw Blade Diameter
|Max. Cutting Depth
|Net Weight / Gross Weight
||4.5kg (9.9 pounds) / 7.0kg (15.4 pounds)
||115mm saw blade * 5 + 3m water pipe * 1 + water pump * 1+ suitcase * 1 + vacuum cleaner adapter * 1
||700 * 250 * 300mm
||red brick, granite, concrete, marble, rebar
- Adjustable cutting depth & wedth: Cutting groove depth of wall chaser can be randomly controlled. Max. cutting depth is up to 37mm (1.5"), max. cutting width 33mm (1.3").
- Easy to hold: Weight 4.5kg, the handle can be rotated 360°. It can also work much effort without any assistants to increase the efficiency of work.
- Safety: With high power 4000W copper motor and power supply voltage 220V; the two devices of vacuum cleaner and water pump work at the same time to reduce the dust during work, taking into account your health; the switch is equipped with a waterproof cover. Protect the power supply from leakage & protect you from harm.
- Multifunction use: Widely applied and adapt to different materials of wall, such as red brick, granite, concrete, marble, rebar. Ideal for electricians, plumbers and other contractors.
Notes: User should take dustproof glasses, mask and built-in vacuum port and water pump at the same time to reduce the dust during work.
Tips: How to install saw blades of wall chaser grooving machine?
Step 1. Use wrench to fix the main shaft and use the hex wrench to turn counterclockwise to loosen it.
Step 2. Insert the pressure plate.
Step 3. Place the saw blade and pressure plate at intervals.
Step 4. Place the nut on the pressure plate.
Step 5. Tighten the screw with the wrench and hex.
Step 6. The saw blades are installed.
