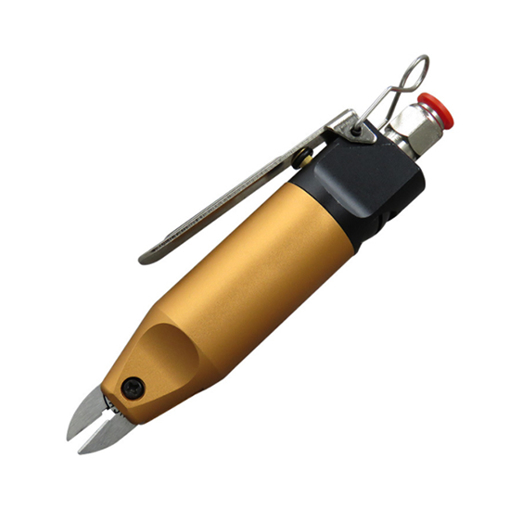

    Air Nipper, Cutting 1.0mm Copper Wire

    Buy mini air nipper for copper and iron wire at wholesale price. High quality pneumatic metal cutter designed for shearing 1.0mm copper wire and 0.5mm iron wire. 64cm³/ cycle air consumption, 73-87psi working pressure, 5/16 in. air inlet.
    SKU: T-HS5-S2S
    Wholesale Price - The more you buy, the more you save
    5% OFF
    7% OFF
    10% OFF
    15% OFF
    i h
    Free shipping
    Delivery date: 6-12 days

    Best pneumatic scissor for sale online, is an air shear tool with small size but strong impact resistance, used for metal cutting in large production lines, electricians, repairs, hardware, and auto repair.


    Model T-HS5-S2S
    Maximum Cutting Capacity

    1.0mm Copper Wire

    0.5mm Iron Wire

    Air Consumption 64cm³/ cycle
    Operating Air Pressure 73-87psi
    Applied Pressure 390N
    Air Inlet Size 5/16 Inch
    Recommended Hose Inner Diameter 5mm
    Applicable Hose Size 5*8mm
    Overall Length 150mm
    Net Weight 0.18kg
    Package Weight 0.35kg

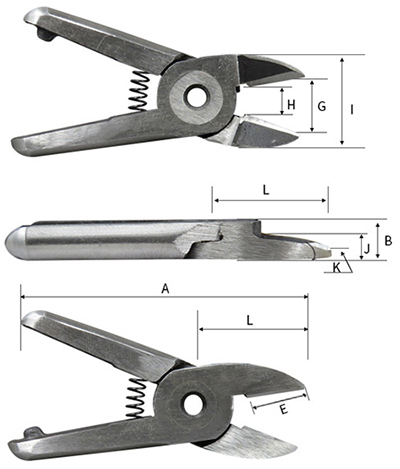

    Details of air nipper which cuts 1mm copper wire  A. overall length: 64mm
    B. thickness: 7mm
    E. working length of blade: 13mm
    F. working angle of blade: 0°
    G. V-shaped upper end: 4mm
    H. V-shaped bottom end: 2mm
    I. maximum width of knife arm: 17mm
    J. maximum thickness of knife arm: 4mm
    K. minimum thickness of knife arm: 1mm
    L. front end length of screw hole: 24mm
    width of closed shear: 16mm
    extending length: 17mm

    Installation of air nipper blade

    1. Put the blade into the air nipper body.
    2. Align the bolt and put it in.
    3. Tighten the nut.

    Installation of air nipper blade

    Tips: 4 tips for using air nipper to cut 1.0 mm copper wire

    In order to keep your pneumatic nipper air tool in good working condition for a long time, please maintain air shear according to the following items.

    • Use air with proper pressure: Please use the working air pressure in the range of 73-87psi. If the working pressure is too low, the working efficiency of the air shear will be significantly reduced or even fail to work normally. If the air pressure is too high, although the working efficiency of the air shear can be improved, it is easy to damage the internal parts and shorten the life of the air shear.
    • Use filter: The moisture, dust, rust and other foreign objects in the air are the main reasons that cause premature aging of air scissor parts. Therefore, it is necessary to install a filter for the pneumatic scissor. Filter foreign matter in the air to provide clean and dry air for the air cutter. The filter must have enough flow and be cleaned frequently, otherwise it will affect normal operation due to insufficient flow.
    • Lubrication of air shear: Air shear and other air tool must be properly lubricated regularly to ensure normal and long-term work. Put 3-4 drops of lubricating oil into the air inlet of the air nipper before and after each work.
    • In addition, after working for a period of time, the air compressor that powers the pneumatic nipper will accumulate a large amount of water, and the water must be discharged regularly to ensure the air is dry.
