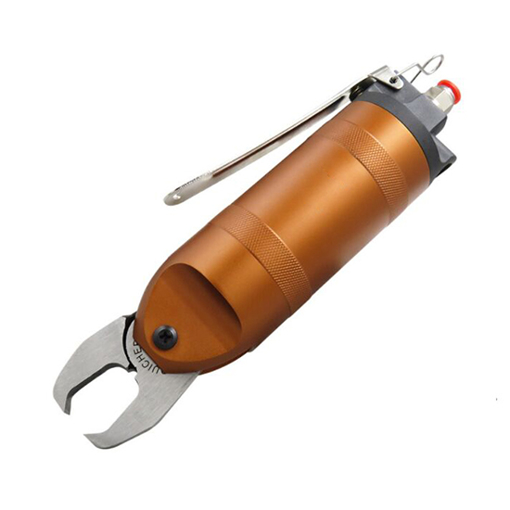

    Air Nipper, Cutting 10mm Soft Plastic

    Buy best pneumatic air nipper, which can cut 10mm soft plastic and 8mm hard plastic after actual measurement. Special scissors head design, the working width of air scissor blade is 11mm. The handle has a large-area non-slip design, not easy to fall off during work, is a safe and reliable air nipper tool.
    SKU: T-FP10F
    Wholesale Price - The more you buy, the more you save
    Quantity
    50+
    100+
    200+
    500+
    Price
    5% OFF
    7% OFF
    10% OFF
    15% OFF
    $273.69
    i h
    Free shipping
    Delivery date: 6-12 days

    Lower cost air scissor for sale online. Good for plastic cutting of large production lines, electricians, repairs, hardware, and auto repair. Much better and safer than traditional scissors, is a perfect air cutter which workers are more willing to use.

    Specification

    Model T-FP10F
    Maximum Cutting Capacity

    10mm Soft Plastic

    8mm Hard Plastic

    Air Consumption 584cm³/ cycle
    Operating Air Pressure 73-87psi
    Applied Pressure 2740N
    Recommended Hose Inner Diameter 5mm
    Applicable Hose Size 5*8mm
    Overall Length 235mm
    Net Weight 0.98kg
    Package Weight 1.3kg

    Details

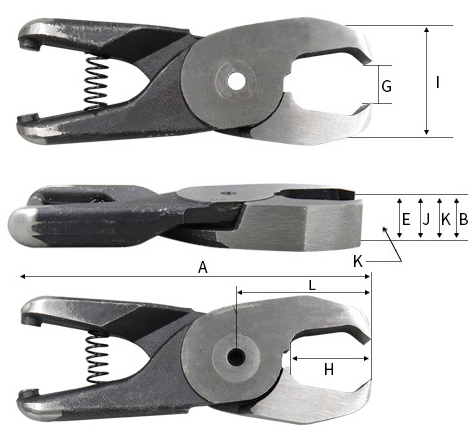

    Details of air nipper which cuts 10mm soft plastic A. overall length: 129mm
    B. thickness: 17mm
    E. working length of blade: 17mm
    F. working angle of blade: 90°
    G. V-shaped upper end: 11mm
    H. V-shaped bottom end: 27mm
    I. maximum width of knife arm: 42.5mm
    J. maximum thickness of knife arm: 17mm
    K. minimum thickness of knife arm: 17mm
    L. front end length of screw hole: 46mm
    width of closed shear: 36mm
    extending length: 35mm

    Installation of air nipper blade

    1. Put the blade into the air nipper body.
    2. Align the bolt and put it in.
    3. Tighten the nut.

    Installation of air nipper blade

    Tips: Why you need an air nipper which can cut off 10mm soft plastic and 8mm hard plastic?

    1. The air shear has a safety switch and a safety clip design, which can reduce the danger caused by accidentally touching the air shear.
    2. The pneumatic nipper has a pressurized design and a stable design, which can significantly improve the insufficient or unstable air pressure and increase the operating speed of the pneumatic scissor.
    3. The air cutter adopts high-strength alloy steel scissors head, which is processed and formed by a precision lathe at one time. High hardness, sharp blade, not easy to scratch and collapse. The blade of the pneumatic cutter is easy to replace and can be operated on site, reducing the waiting time for maintenance and improving work efficiency.
    4. Patented design of air scissors blade. It can cut off 8mm hard plastic and 10mm soft plastic. In addition to being more labor-saving than traditional cutting tools, for materials that cannot be sheared by traditional cutting tools, such as plastic products with special angles, this air nipper tool can help you finish cutting easily.
    5. The air scissor body is made of high-quality aviation aluminum, and the inner wall is precision milled and polished to prevent air leakage. It is a durable air tool with industrial-grade quality.
