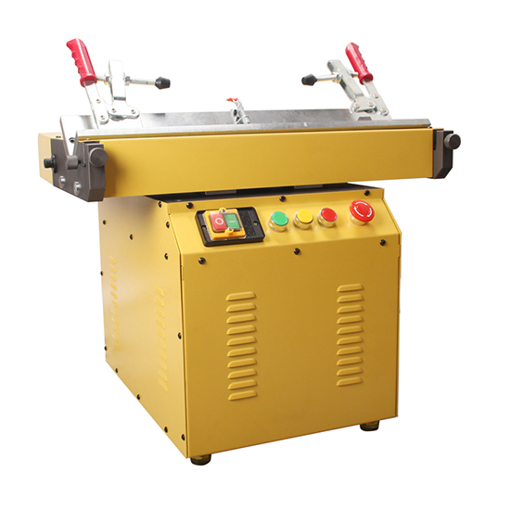

    45° Deburring/Chamfering Machine, Semi-Automatic

    Semi-automation deburring/chamfering machine for sale. Chamfering angle is 45°, chamfering range is 0~3mm adjustable. Chamfering type is straight chamfer. Power supply is 3-phase 380V 550W, rotating speed is 8000rpm. Slide rail design, high speed and precision.
    SKU: T-CFM-R8H
    $2,577.69
    i h
    Free shipping
    Delivery date: 6-12 days

    Specification

    Model T-CFM-R800H
    Chamfering Range 0~3mm
    Chamfering Angle 45°
    Rated Voltage 380V 50Hz
    Motor Power 550W
    Speed 8000rpm
    Dimension 74*49*66cm
    Warranty 1 Year
    Weight 71 kg

    Note: It is better to keep the grinding amount at 2mm each time.

    Features

    • Applicable types: hardness<HRC30°, plate thickness>2mm, chamfer size≤C3 angle.
    • Work skateboard is made of high-quality die steel with hard chrome plating on the surface, low friction and durable.
    • If the length of adjustment workpiece is large, quick fixture can be adjusted according to demand.
    • Leakage protection switch, overload leakage protection, protect the machine and personal safety.

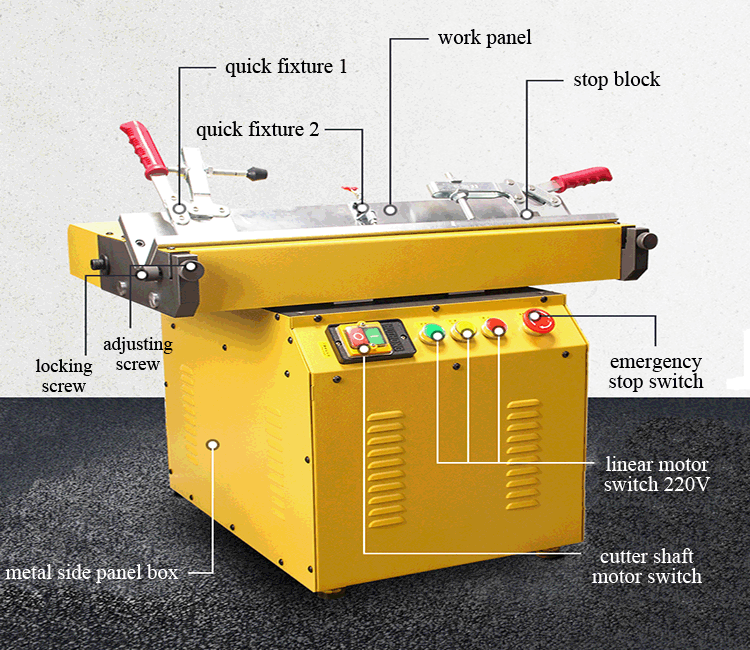

    Structure Diagram of Semi-Automatic Deburring/Chamfering Machine

    Structure Diagram of Semi-Automatic Chamfering Machine

    Tips: Daily maintenance for chamfering machine.

    1. After each use, clean the iron filings remaining on chamfering machine in time to keep the machine clean.
    2. Pay attention to the tightness of belt and adjust if necessary.
    3. Frequently check whether the fastening screws of each part are loose.
    4. Bearing on tool axis should be lubricated once every 6 months.
    5. If blade is worn or damaged, adjust the blade, use other cutting edges to rotate a certain angle, and then firm it. If cutting edges on all four sides of the blade are worn out, replace them with new ones.
