    30°~60° Portable Plate/Pipe Beveling Chamfering Machine

    Portable beveling chamfering machine for pipes and plates. Maximum cutting edge width 15mm (adjustable), chamfering angle 30°~60°, rotation speed 2870 rpm, power supply 380V 1.1kw. Comes with milling cutter disk and milling insert.
    SKU: T-CFM-SKF
    $1,572.77
    i h
    Free shipping
    Delivery date: 6-12 days

    The beveling/chamfering machine can be used in beveling, deburring and chamfering for metal pipes and plates before welding. Applicable materials include steel, cast iron, hard plastic, non-ferrous metals, etc. It is the best chamfer tool with good price.

    Specification

    Model T-CFM-SKF15
    Max. Cutting Edge Width 15mm (adjustable)
    Chamfering Angle 30°~60°
    Rotation Speed 2870rpm
    Rated Power 1.1kw
    Voltage 380V
    Warranty 1 year
    Weight 18 kg
    Supplementary Tools φ66mm butterfly milling cutter*2, each has 6 pieces high-speed carbon steel embedded milling cutter blades

    Features

    • Chamfering width and chamfering angle are adjustable. Cutting piece is standard piece, easy to replace. Milling cutter disk is roller type, which improves efficiency and saves mold making time.
    • Compact structure, portable design, hand-held operation, easy to move. Small vibration, stable operation, precise and safe.

    Operation Demonstration and Chamfering Effect

    Operation and Effect of Portable Beveling Chamfering Machine

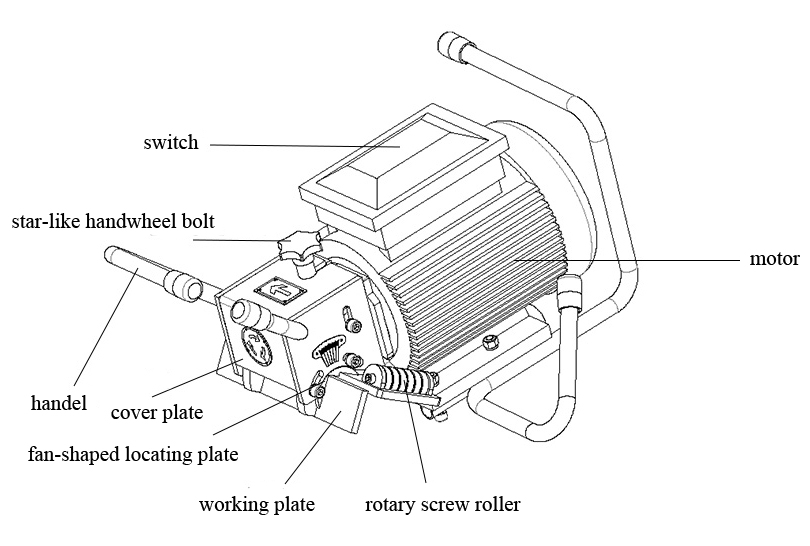

    Structure Diagram of Portable Plate/Pipe Beveling Chamfering Machine

    Structure Diagram of Portable Pipe Beveling Chamfering Machine

    Applicable Materials

    Applicable Materials of Portable Beveling Chamfering Machine

    Tips: What is a beveling chamfering machine?

    • Bevel is a groove with a certain geometric shape on workpiece. Beveling is mainly for welding workpiece and ensure welding degree. Beveling machine can be used to process the required profile for the parts to be welded of workpiece.
    • Chamfering is a process for cutting the edges and corners of workpiece into a certain bevel. Chamfering is to remove the burrs on parts due to machining, and also to facilitate parts assembly. Generally, chamfering is made at the end of parts.
    • Beveling chamfering machine is a portable machine tool integrating beveling machine and chamfering machine.
