Best angle grinder with good price. Optional grinding disk 7 inch (180mm) or 9 inch (230mm). Multifunctional electric angle grinder for wood, metal, ceramic tile and so on. Small size, lightweight, compact design, comfortable for use by hand.
Specification
Model |
T-CF-AG020 |
Grinding Disk Diameter |
inch |
7, 9 |
mm |
180, 230 |
No-load Speed |
6600 rpm, 8000 rpm |
Voltage |
110V/220V |
Frequency |
50Hz~60Hz |
Rated Power |
2,600W |
Rated Current* |
110V |
23.6A |
220V |
11.8A |
Accessories |
1 metal cutting wheel, 1 wrench, 1 handle, 1 carbon brush, 1 wheel guard |
Weight |
3kg |
*Note: Rated current = Rated powerĂ·Rated voltage
Angle Grinder Functions
- Metal cutting
- Metal grinding & polishing
- Ceramic tile cutting
- Wood cutting
- Wood grinding & cutting
Angle Grinder Structure Diagram

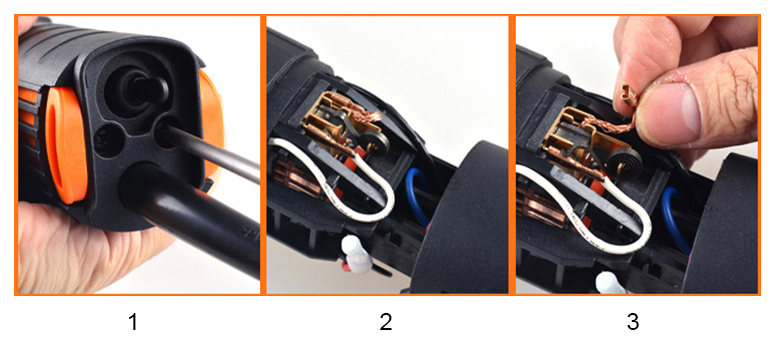

Carbon Brush Replacement for Angle Grinder

- Use a flat-blade screwdriver to unscrew the outer cover.
- Gently pull the cover back.
- Take out the old carbon brush and replace it with a new one.
Tips: How to do if angle grinder doesn't work after power connection?
- Power supply is cut off. Repair the power supply for angle grinder.
- Joint is loose. Check all joints for angle grinder.
- Poor contact or failure of switch. Repair or replace the switch for angle grinder.
- Electric brush of the angle grinder does not contact commutator surface. Replace carbon brush.
