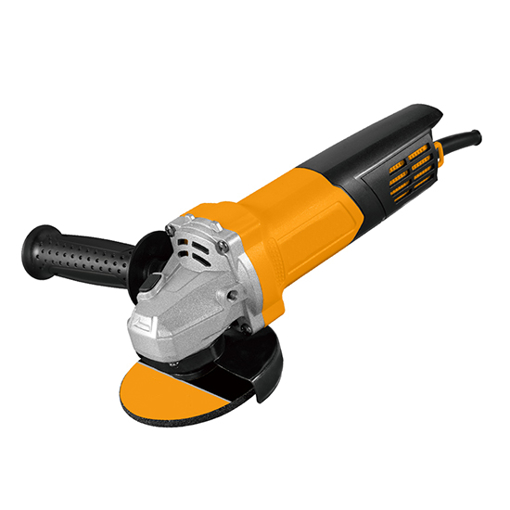

The electric angle grinder has a grinding disk of 4 inch or 4.5 inch, optional high power 900W or 1050W. The small handheld angle grinder has the functions of grinding, cutting and polishing. Applicable materials are wood, metal, tile, etc.
Specification
Model |
T-CF-AG004 |
T-CF-AG005 |
Grinding Disk Diameter |
inch |
4, 4-1/2 |
mm |
100, 115 |
No-load Speed |
11,500 rpm |
Voltage |
110V/220V |
Frequency |
50Hz~60Hz |
Rated Power |
1,050W |
900W |
Rated Current* |
110V |
9.5A |
8.2A |
220V |
4.8A |
4.1A |
Accessories |
1 metal cutting wheel, 1 wrench, 1 handle, 1 carbon brush, 1 wheel guard |
Weight |
3kg |
*Note: Rated current = Rated powerĂ·Rated voltage
Angle Grinder Functions
- Metal cutting
- Metal grinding & polishing
- Ceramic tile cutting
- Wood cutting
- Wood grinding & cutting

Angle Grinder Structure Diagram

Tips: How to replace carbon brush for angle grinder?
- Use a Phillips screwdriver to loosen the screws at the end of angle grinder.
- Pull out the back cover and find carbon brush position.
- Pull the coil spring on carbon brush to one side.
- Pull out carbon brush terminal and take out the carbon brush.
- Install the spare carbon brush, plug in connector, and finally install the back cover of the angle grinder.
